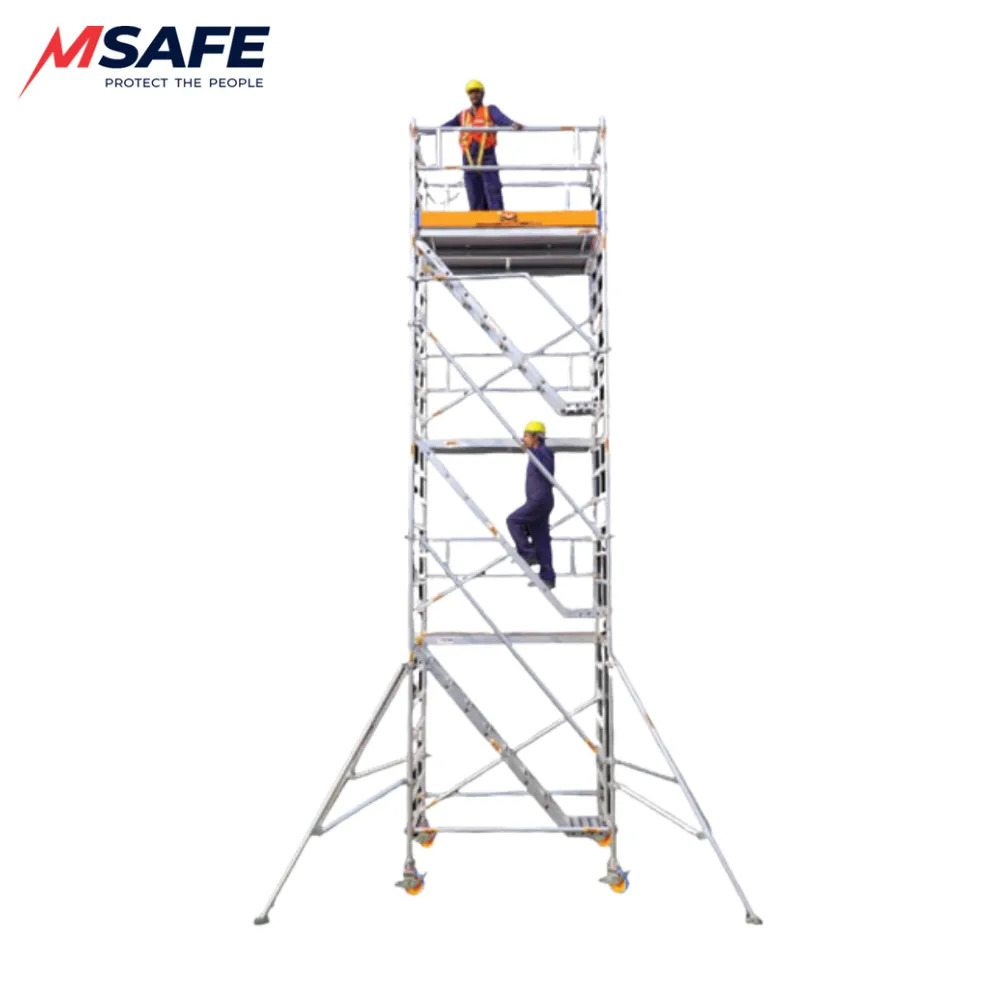

Double Width Stairway Mobile Scaffold Towe

Double Width Stairway Mobile Scaffold Towe Specification

Constitute
Stairway Unit, Platforms, Guardrails, Toe Boards, Wheel Castors, Adjustable Base Plates

Sleeve size
48.3 mm

Weight
~120-135 kg (varies with height)

Pin
Locking Pin with Clip Safety System

Color
Metallic Silver (Standard), Custom Color Available

Features
Integrated stairway for internal access, Lightweight, Rustproof, Easy Mobility, Quick Assembly & Dismantle, Anti-slip steps, Foldable toe boards

Prop Head
Universal Base Jack Head

Technique
Welded Frame Construction

Product Type
Scaffolding Platform

Material
High-Grade Aluminum Alloy (6061-T6 or similar)

Components
Frames, Stairway Ladder, Guardrails, Platforms, Toe Boards, Jack, Adjustable Wheels, Diagonal Braces, Horizontal Braces, Stabilizers, Locking Pins, Handrails, Base Plates

Diameter
50 mm (main tube)

Width
1.35 m (Double Width Structure)

Length
2.00 m

Height
Up to 12 m (working height, customizable)

Thickness
2.2 mm (scaffold tube wall)

Platform Loading Capacity
200 Kilograms (kg)

Surface Treatment
Anodized Finish (Anti-corrosive)

Application
Industrial construction, Building maintenance, Electrical work, Painting, Installation tasks, Indoor & outdoor operations

Size
1.35 m (width) x 2.00 m (length) x 2.00-12.00 m (height, modular)

Anti-slip Steps
Grooved aluminum tread integrated

Safe Working Load (SWL)
270 kg (evenly distributed per platform)

Assembly Time
20-30 minutes (standard tower height)

Environmental Resistance
Weatherproof, UV Resistant Finish

Toe Board Height
150 mm

Guardrail Height
1000 mm

Maximum Free Standing Height
8 m indoors, 12 m outdoors with tie support

Certificate Standard
EN 1004, ISO 9001 Certified

Base Stabilizer
Adjustable Outriggers for Enhanced Stability

Platform Material
Anti-slip Plywood with Aluminum Frame

Step Width
600 mm (approx. stair width)

Transportability
Modular structure for easy transport and storage

Wheel Type
Heavy Duty Swivel Castor Wheels with Brake (150 mm diameter)

Stair Angle
45 degrees for safe access

Double Width Stairway Mobile Scaffold Towe Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Double Width Stairway Mobile Scaffold Towe

Working Height	6 m (20 ft)
Width Type	Double Width
Color	Silver
Brand	Msafe
Platform Length	1.8 m (6 ft)
Load Capacity	200 kg
Access Type	Stairway
Material	Aluminium
Scaffolding Category	Aluminium Scaffolding
Features	Guardrails, Lockable Casters, Toe Boards
Standard Compliance	ISO 9001:2015, EN 1004
Service Duration	1-12 months
Service Mode	Offline
Availability	In Stock

Stairway Tower Repairing Service is designed to maintain and restore the safety, functionality, and reliability of your stairway scaffolding towers.

Robust Design for Maximum Safety

This scaffold tower is constructed from high-grade aluminum alloy with a durable anodized finish, making it rustproof and highly resistant to weather and UV exposure. The welded frame construction, integrated stairway, and locking pin safety system work together for exceptional strength and user safety, while adjustable base outriggers ensure stability at any height.

Intuitive Assembly and Portability

Thanks to its modular structure, the tower assembles quickly-typically within 20 to 30 minutes for standard sizes-and packs down efficiently for transport or storage. Heavy-duty swivel castor wheels deliver smooth mobility, letting users easily reposition the scaffold on-site as needed. All elements from platforms to toe boards are designed for swift, tool-free setup.

Versatile Applications

Ideal for industrial construction, building maintenance, electrical tasks, painting, and installation work, this mobile scaffold tower is suitable for both indoor and outdoor environments. Its customizable modular height (up to 12 meters) and double width structure provide ample working space and support diverse project demands.

FAQ's of Double Width Stairway Mobile Scaffold Towe:

Q: How is the Double Width Stairway Mobile Scaffold Tower assembled?

A: The scaffold tower features a modular design that allows for fast and intuitive assembly using locking pins and clips for safety. Typically, two qualified users can set up the standard tower height within 20 to 30 minutes without special tools.

Q: What safety features are included in this scaffold tower?

A: Safety is prioritized through anti-slip plywood platforms, 1000 mm guardrails, grooved anti-slip aluminum steps, an integrated stairway, 150 mm toe boards, locking pin and clip systems, and adjustable base outriggers for enhanced stability.

Q: When should tie support be used for this tower?

A: Tie supports are required when the scaffold tower is erected outdoors and reaches heights up to 12 meters. For indoor applications, the maximum free-standing height is 8 meters, while outdoor use at greater heights demands tie support for safe operation.

Q: Where can this scaffold tower be used?

A: This mobile scaffold tower is suitable for industrial sites, building maintenance, electrical installation, painting, and other construction or repair work. Its modular design and weather-resistant finish make it ideal for both indoor and outdoor environments.

Q: What is the safe working load and platform capacity for this tower?

A: Each platform supports up to 270 kg (safely and evenly distributed), while the platform itself has a robust loading capacity of 200 kg. This ensures ample strength for tools and personnel during most work tasks.

Q: How is the scaffold transported and stored?

A: The modular and foldable elements, along with a lightweight total weight of approximately 120-135 kg (varies with height), make it easy to disassemble, transport, and store. All components fit conveniently for movement between job sites.

Q: What benefits does this scaffold tower offer compared to traditional scaffolding?

A: It offers quick assembly, enhanced mobility with heavy-duty castor wheels, built-in stairway for easy internal access, rustproof and weather-resistant construction, customizable height, and compliance with EN 1004 and ISO 9001 standards for assured reliability.
