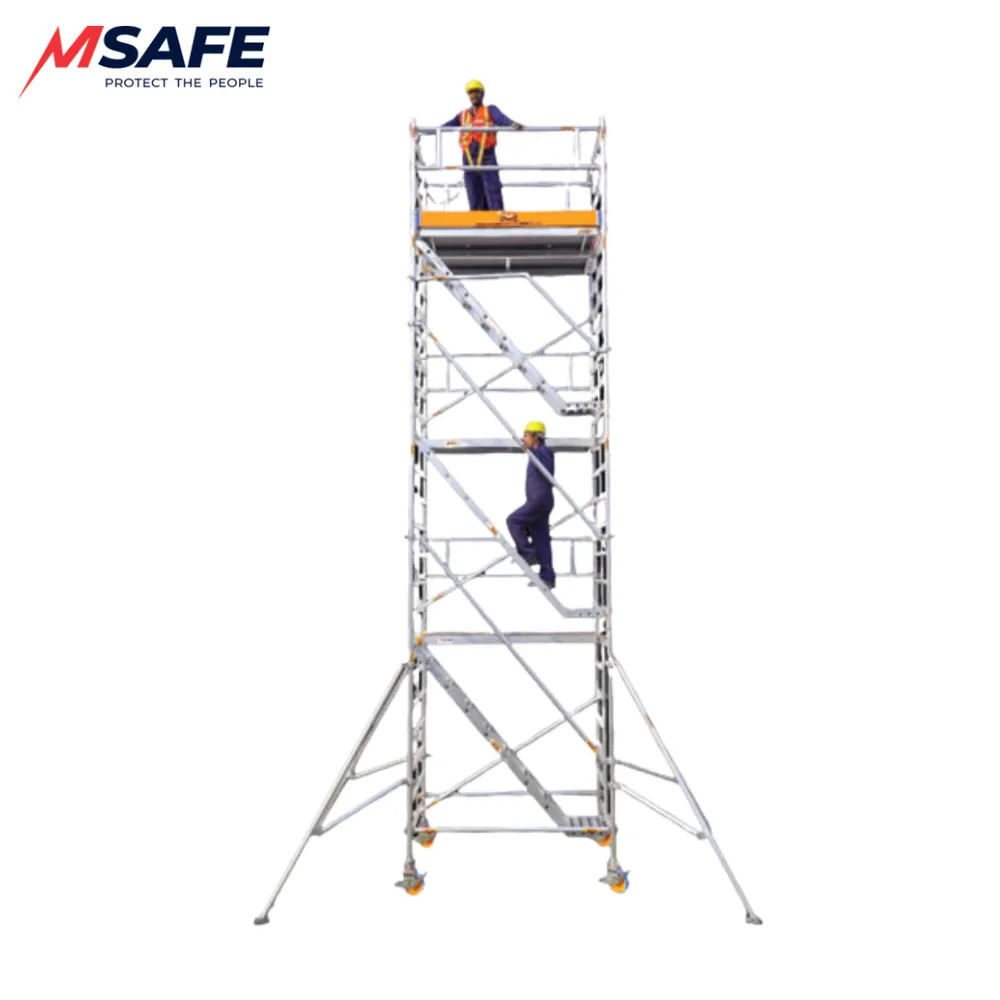

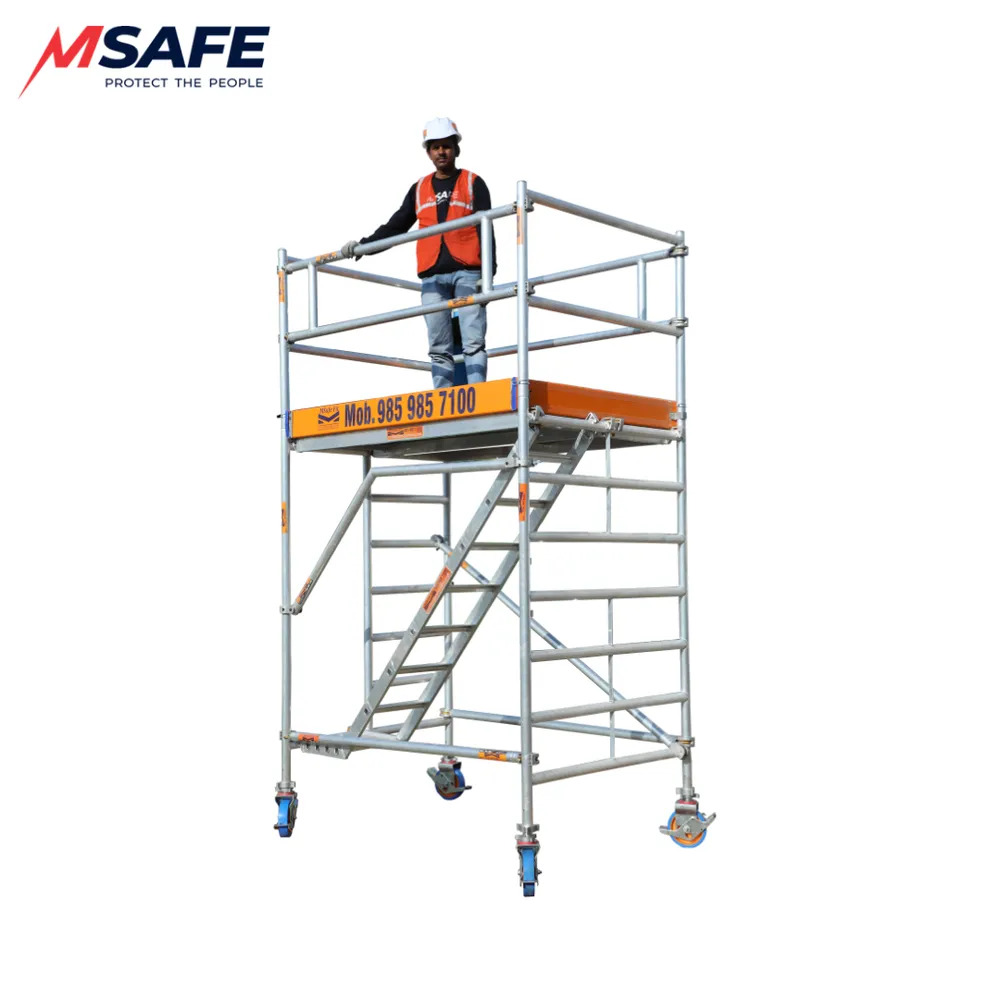

Narrow Mobile Scaffold

Narrow Mobile Scaffold Specification

Sleeve size
Standard sleeve connection: 48.3 mm ID

Constitute
Modular sections

Prop Head
Adjustable leveling jacks

Features
Lightweight, corrosion resistant, easy to assemble, portable

Weight
Approx. 60 kg (for 2m x 0.75m x 6m set)

Technique
Welded modular construction

Pin
Spring loaded locking pins

Color
Silver

Product Type
Narrow Mobile Scaffold

Material
High-strength Aluminium Alloy

Components
Frame, Castor Wheels, Platform, Guardrail, Diagonal Braces, Toe Boards, Ladder

Diameter
48.3 mm (main tube)

Width
0.75 m

Length
2 m

Height
Up to 6 m (free standing), extendable with outriggers

Thickness
2.6 mm

Platform Loading Capacity
225 kg (evenly distributed)

Surface Treatment
Anodized finish

Application
Indoor and outdoor maintenance, construction, electrical works

Size
2 m (L) x 0.75 m (W) x 6 m (H)

Stabilizer/Outrigger
Provided for heights above 4 m

Guardrail Height
1.0 m above platform

Maximum Safe Wind Speed
12.5 m/s

Compliance
Meets EN1004 and IS:4912 standards

Working Height
Up to 8 m with outriggers

Wheel Size
150 mm diameter lockable castors

Storage
Collapsible for easy transportation

Platform Material
Non-slip plywood with aluminium frame

Assembly Time
Approx. 20 minutes

About Narrow Mobile Scaffold

Working Height	4.2 m
Platform Height	2.2 m
Tower Width	0.75 m
Material	Almunium
Load Capacity	200 kg/m2
Number Of Platforms	Single Platform
Working Heights	13 meter
Wheel Type	PU Castor
Stabilizer Type	Diagonal Brace
Access Type	Climbing Rungs
Platform Size	0.75 m * 1.8 m
Model Name/Number	MN045
Scaffolding width	0.75 m
Brand	Msafe
Availability	In Stock

Narrow Mobile Scaffold is a compact and portable scaffolding system designed to access tight and confined spaces where standard scaffolding systems may not fit.

Robust Aluminium Construction

Built with lightweight yet durable high-strength aluminium alloy and finished with corrosion-resistant anodizing, this mobile scaffold offers lasting reliability in various work environments. The welded modular structure provides both stability and quick assembly, while easy-to-handle sections simplify setup and storage.

Enhanced Safety and Compliance

Safety is prioritized through a 1.0 m high guardrail above the platform, anti-slip plywood surface, and toe boards to prevent tool falls. Conforming to EN1004 and IS:4912 standards, it includes lockable castors and spring-loaded locking pins, ensuring secure operation even at heights up to 8 m with outriggers.

Convenient Portability and Storage

The collapsible design and lightweight materials facilitate effortless transportation and storage. The scaffold can be set up or dismantled in approximately 20 minutes, making it highly practical for professionals who need flexible, on-the-go access to elevated workspace.

FAQ's of Narrow Mobile Scaffold:

Q: How is the Narrow Mobile Scaffold assembled and what is the average setup time?

A: The scaffold employs a modular welded construction with spring-loaded locking pins and intuitive connectors, allowing assembly by two people in about 20 minutes. Detailed instructions are included for safe and efficient setup.

Q: What is the maximum working height, and how is stability maintained at higher elevations?

A: The scaffold provides a maximum working height of up to 8 meters with stabilizing outriggers. Outriggers and adjustable leveling jacks are included for use above 4 meters to ensure safety and prevent tipping.

Q: Where can this scaffold be used, and what types of jobs is it suitable for?

A: This scaffold is ideal for both indoor and outdoor applications-maintenance, construction, electrical works, or facility management-especially in confined or narrow spaces thanks to its 0.75 m width.

Q: What safety features are integrated into the scaffold design?

A: Key safety features include a 1.0 m high guardrail above the platform, anti-slip plywood surface, durable toe boards, lockable 150 mm castors, spring-loaded pins, and compliance with EN1004 and IS:4912 safety standards.

Q: How portable is the unit, and how is it transported or stored?

A: The scaffold is collapsible and constructed from lightweight aluminium alloy, making it easy to transport in most commercial vehicles. Once disassembled, the sections stack compactly for efficient storage.

Q: When should outriggers be used with this scaffold?

A: Outriggers must be installed and used whenever the scaffold platform height exceeds 4 meters to ensure adequate stability and safety during operation.

Q: What is the platform's loading capacity and what materials are used for its construction?

A: The scaffold's platform withstands up to 225 kg (evenly distributed) and is manufactured from non-slip plywood reinforced with a strong aluminium frame, enhancing safety and durability during use.
